USYFITVUE SP1

Linear prismatic loupes with high power magnification (5.0x) providing bright field of view. Focus and loupes positioning are flexibly adjustable.

Features

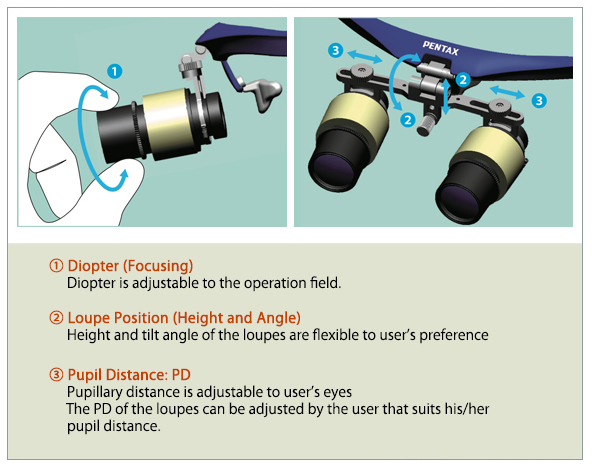

Adjustable Function

Specifications

Type

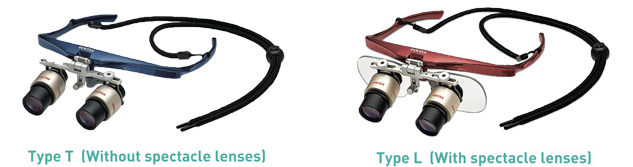

  Type T (Without spectacle lenses) Type L (With spectacle lenses)
Magnification 5.0x 5.0x
Working Distance (WD) 35cm 40cm 45cm 50cm
Exit Pupil Diameter 4.2mm
Weight* 111g 121g
Loupes Position 52mm ~ 76mm
Spectacle Lenses - High refractive index 1.67
(aspheric design)
Frame Nylon
Frame color R;Red K:Black B:Blue S:Silver
*May vary with the strength of the lenses.(Strap weight not included.)
Trade name:PENTAX USYFITVIEW SP1

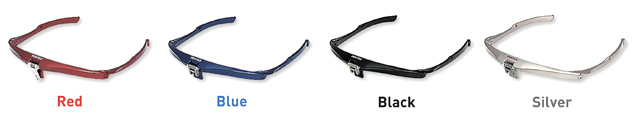

Frame color
